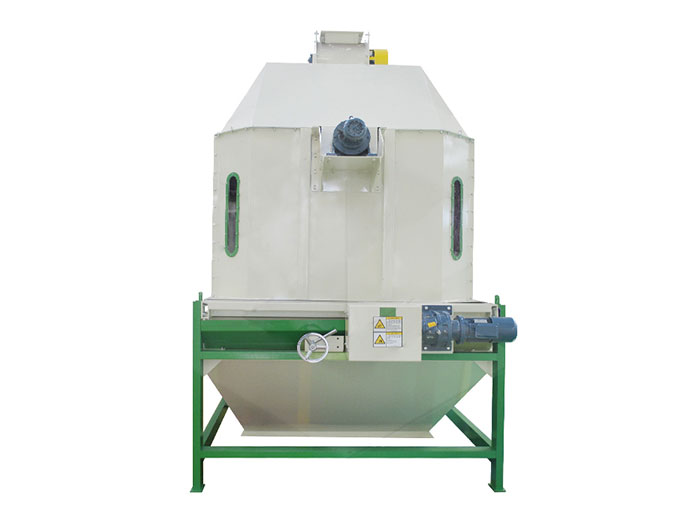

SKLN Counterflow cooler
Counterflow cooler Applications
Applicable to a variety of granular material cooling
Counterflow cooler Features
1.Adopt counterflow cooling principle to make the pellet cooling fully and uniformly.
2.Pellet temperature is not higher than room temperature + 3-5 ℃ after cooling.
3.Slide valve discharging structure running smoothly
Model | Output(t/h) | Cooling Volume(m3) | Cooling time(min) | Material temperature after cooling | Power(KW) |
SKLN1.5 | 3 | 1.5 |
Not less than 6-10 min |
Not higher than room temperature 3-5 | 0.75+0.55 |
SKLN2.5 | 5 | 2.5 | 0.75+0.55 | ||
SKLN4 | 10 | 4 | 1.5+1.1 | ||
SKLN6 | 15 | 6 | 1.5+1.1+0.37 | ||
SKLN8 | 20 | 8 | 1.5+1.5+0.37 | ||
SKLN10 | 25 | 10 | 1.5+1.5+0.37 |

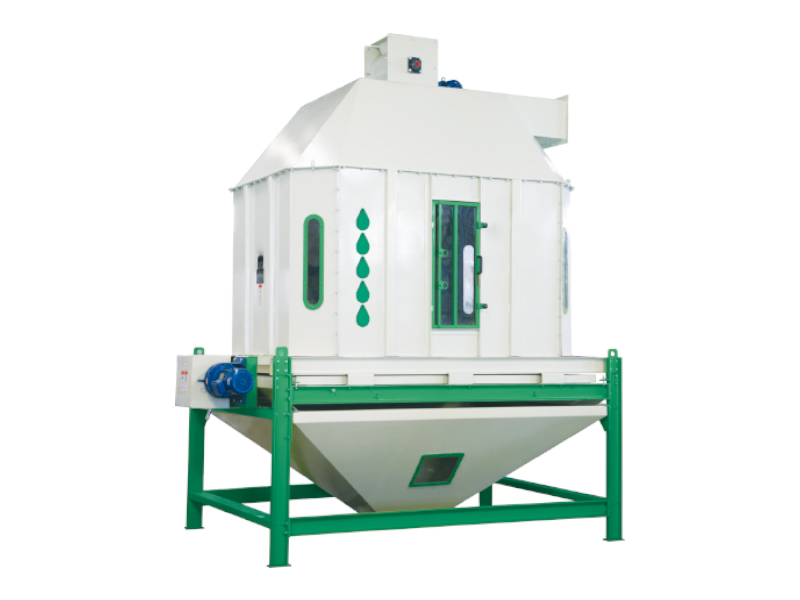

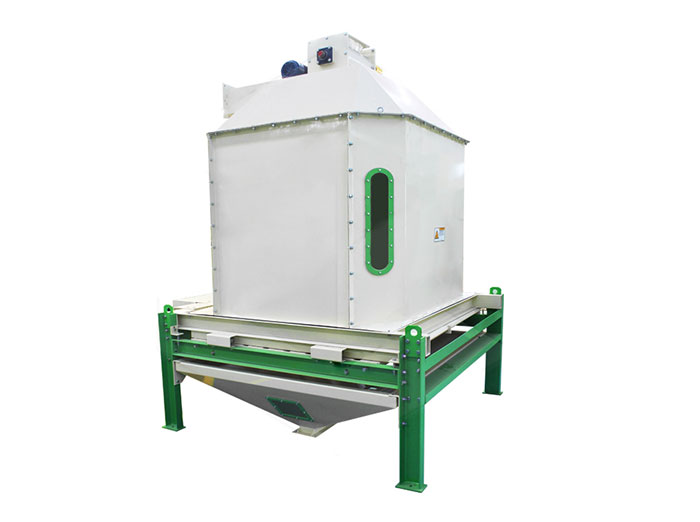

SKLB Swinging Counterflow cooler
Applications
Mainly used for bulk,massive,flake,granular and various materials such as pellet feed, expanding feed, especially for expanding feed and extruding feed cooling.
Features
1.Adopt counterflow cooling principle to make the particles cooling fully and uniformly.
2.Flexible hydraulic control system of discharging structure makes the discharging smoothly.
Model | Output(t/h) | Cooling Volume(m3) | Cooling time(min) | Material temperature after cooling | Power(KW) |
SKLB1 | 2 | 1 | Not less than 6-10 min | Not higher than room temperature 3-5 | 0.55+1.5 |
SKLB1.5 | 3 | 1.5 | 0.55+1.5 | ||
SKLB2.5 | 5 | 2.5 | 0.55+1.5 | ||
SKLB4 | 10 | 4 | 0.75+0.55 | ||
SKLB6 | 15 | 6 | 1.5+1.5+0.37 | ||
SKLB8 | 20 | 8 | 1.5+1.5 | ||
SKLB10 | 25 | 10 | 1.5+1.5+1.1 | ||
SKLB12 | 30 | 12 | 1.5+1.5+1 |
