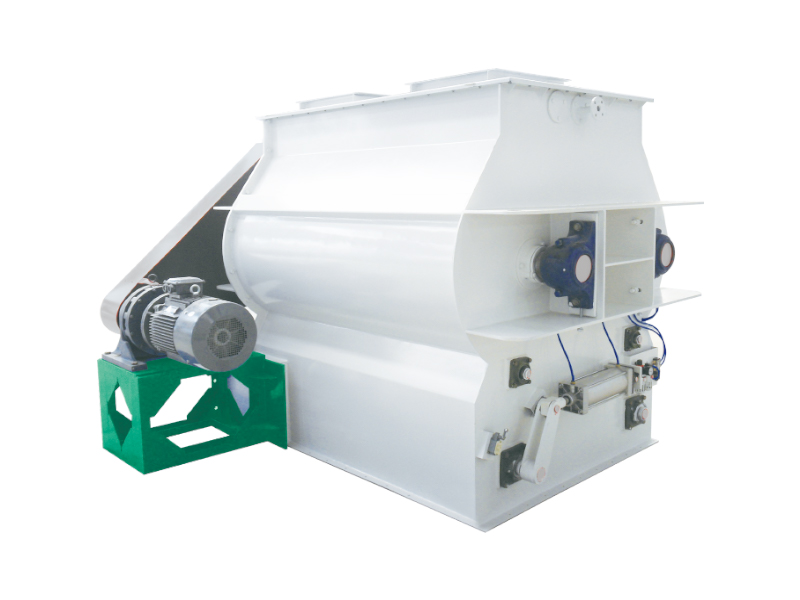

SSHJ Double-shaft Paddle Mixer
Double-shaft Paddle Mixer Applications
Used to mixing Powdery, granular, flaky, lumpy and viscous of Feed, grain, food, chemical, pharmaceutical, pesticide and other industries also can add a variety of liquids (such as: water, molasses, grease, etc.)
Double-shaft Paddle Mixer Features
1.The improvement of the door shaft and the connecting rod mechanism ensures that door’s angle is greater than 90 when opening and locked when closed with better sealing and no leakage.
2.High mixing uniformity, no dead Angle, short period, 30-120s for each batch of materials
3.The machine is equipped with oil adding pipeline, adding a variety of liquid.
Model | Effective volume(m3) | Each batch mixing volume(kg) | Each batch of mixed time(s) | Mixing uniformity | Power(KW) |
SSHJ0.1 | 0.1 | 50 | 30-120 | ≤5% | 2.2(3) |
SSHJ0.2 | 0.2 | 100 | 30-120 | CV≤5% | 3(4) |
SSHJ0.5 | 0.5 | 250 | 30-120 | CV≤5% | 5.5(7.5) |
SSHJ1 | 1 | 500 | 30-120 | CV≤5% | 11(15) |
SSHJ2 | 2 | 1000 | 30-120 | CV≤5% | 15(18.5) |
SSHJ3 | 3 | 1500 | 30-120 | CV≤5% | 22 |
SSHJ4 | 4 | 2000 | 30-120 | CV≤5% | 22(30) |
SSHJ6 | 6 | 3000 | 30-120 | CV≤5% | 37(45) |
SSHJ8 | 8 | 4000 | 30-120 | CV≤5% | 45(55) |
